MasterPatio
LIFT AND SLIDE TERRACE DOORS
The MasterPatio system was created to combine elegant appearance with comfort of use, while offering design freedom and sustainable solutions. It is an excellent choice for both energy-efficient and passive buildings, and its durability makes it also great for high structures.
Specification
| Thermal insulation | Uw 0.8 W/m²K |
|---|---|
| Burglary resistance | RUN 24 – RC2 |
| Air tightness | Class 4 (600Pa) |
| Waterproof | Class E1200 (1200Pa) |
| Acoustics | Rw(C;Ctr) 44(-1;-4) dB |
Characteristic features
- Highly insulated system with parameters for high-rise buildings
- Sustainable design through recycled materials and optimized production
- Compatible with MasterLine 8, it allows you to connect structures into façade systems

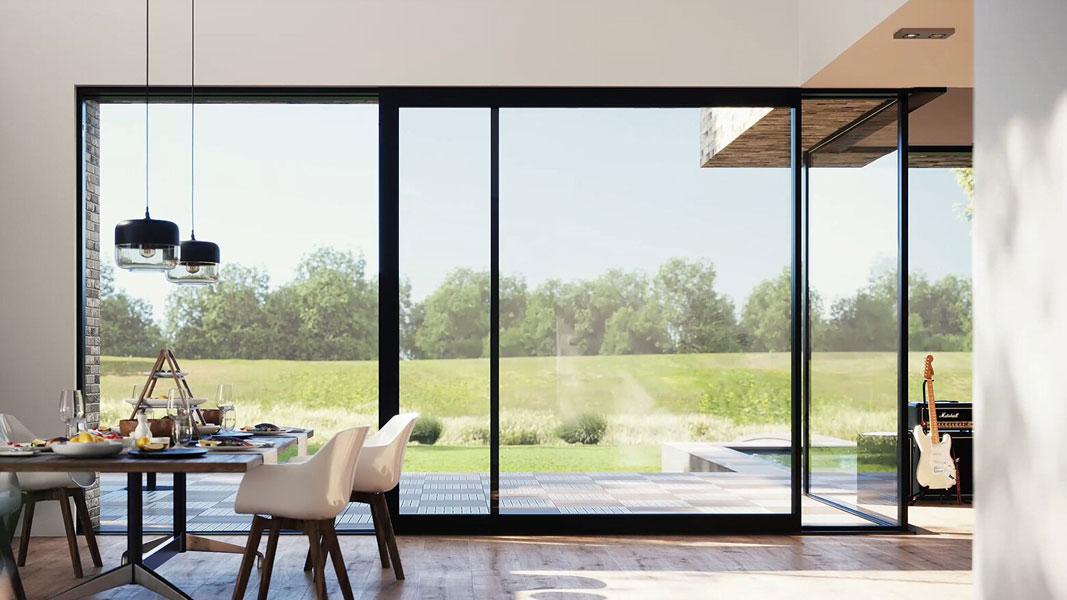

MasterPatio – elegance, comfort and sustainability in one system
MasterPatio is a technologically advanced sliding door that stands out with its exceptional aesthetics and excellent technical parameters. This modern system was created with energy-efficient and passive buildings in mind, making it an ideal choice for investors looking for ecological and durable solutions. By using recyclable aluminum and insulating inserts made of secondary materials, MasterPatio supports sustainable development and reduces the carbon footprint of buildings.
What's more, this system is designed to be versatile and functional. Thanks to the possibility of integration with the MasterLine 8 system, MasterPatio fits perfectly into modern architectural designs, ensuring consistency and aesthetics. In addition, the optional motor for automatic door opening increases the comfort of use, especially in large, representative spaces.
MasterPatio's unique technical parameters
The MasterPatio system is characterized by excellent technical parameters that meet the highest requirements of modern construction projects:
- Thermal insulation: a Uf coefficient of 1.3 W/m²K and a Uw coefficient of 0.8 W/m²K ensure excellent energy efficiency, which helps minimise heating and cooling costs.
- Air tightness: Class 4 (600 Pa) guarantees full protection against drafts and heat loss.
- Wind resistance: class C5 (2000 Pa). The system is resistant to the strongest gusts of wind, which is particularly important in the case of tall structures.
- Sound insulation: The Rw index of 44 dB ensures acoustic comfort, which is important in both residential and commercial buildings.
- Burglary resistance: RC2 WK2 class protects against unauthorized access, which significantly increases user safety.
- Wing dimensions: the possibility of producing doors with a width of 700 to 3000 mm and a height of 1800 to 3600 mm allows the system to be adapted to a variety of projects.
- Maximum leaf weight: up to 500 kg, which allows the use of heavy glass panels, emphasizing the modern character of the building.
The perfect solution for demanding projects
MasterPatio sliding doors are an excellent choice for investors implementing tall structures, including multi-family buildings, office buildings or luxury villas. Thanks to the unique combination of durability, comfort of use and aesthetics, this system meets the expectations of even the most demanding customers.
In summary, MasterPatio is a solution that combines advanced technology, ecology and modern design. Therefore, if you care about elegance and durability, choose MasterPatio - a system that sets new standards in the design of sliding doors.
